Descrizione

CD2 CD player 24/96 Transport/DAC with Level Control

  • Unità di trasporto CD (16/44,1)
  • CDPro2M professional top loading CD mechanism
  • High-performance RCA and XLR audio outputs

Maggiori informazioni

Descrizione

(dal sito del produttore)

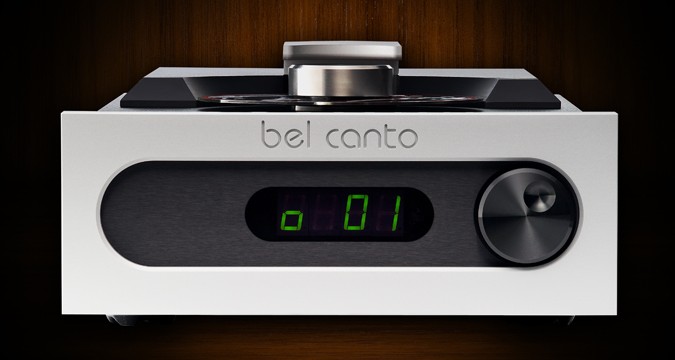

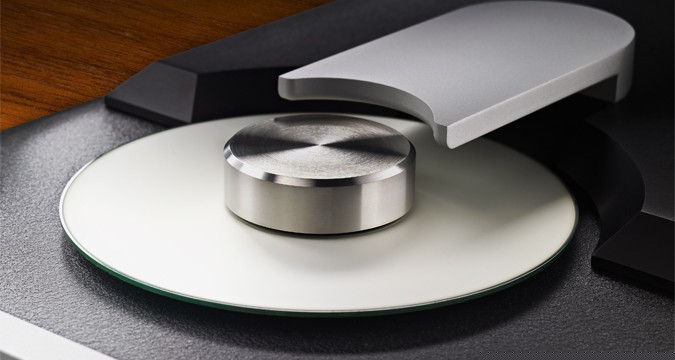

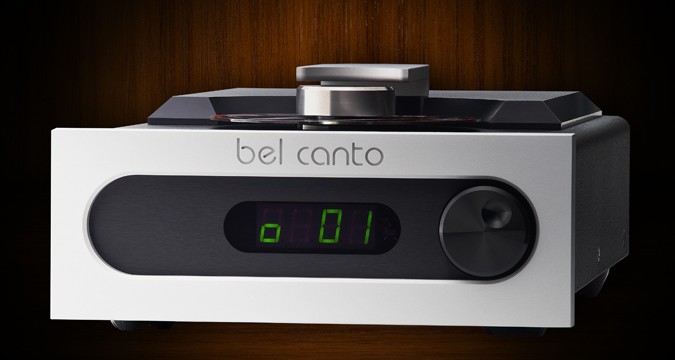

The shortest path to sonic purity. The CD2 provides uncompromising playback of your treasured CD collection. Using the CDPro2M professional top loading CD mechanism as the core of the design, the CD2 provides the best access to the source of digital music both in audio data retrieval and mechanical reliability.

With the latest generation of Sample Rate Converters and the Bel Canto Ultra-Clock™ circuit, the CD2 is the perfect companion source for supplying digital data to any Bel Canto DAC.

High-performance RCA and XLR audio outputs with selectable level control enable you to directly drive any amplifier for the ultimate in compact, high performance CD playback.

Specifiche tecniche



Disc Compatibility: CD-DA (Red Book IEC908), CD-R and CD-RW discs
Digital Outputs:
Maximum Data Rate/Bit Depth: 44.1kHz/16bit
Digital Output types: AES/EBU XLR, SPDIF BNC, TOSLINK
AES/EBU Digital Output Level: 2.7V p-p
PDIF Digital Output Level: 1.2V p-p
All Digital outputs are galvanically isolated
Analog DAC Outputs:
Data Rate/Bit Depth: 192kHz/24bit
Output Levels: Single Ended RCA 2Vrms, Balanced XLR 4Vrms
Dynamic Range: 112dB A-Weighted
THD+N: <0.002%
Output Impedance: RCA 100 ohms, XLR 200 ohms
Frequency Response: 20Hz-20Khz +/-0.1 dB
Ultra-Clock:
Accuracy: 0.0001%
Jitter: 2 ps rms
General:
Slow roll-off linear phase digital filter
Fixed or adjustable analog output
External regulated power supply
CD-Pro2LF mechanism
Power Draw: 5W
Power Requirement: 100-120VAC, 220-240VAC 50/60 Hz
Dimensions: 8.5” W x 12.5” D x 3.5” H (216 mm x 318 mm x 88 mm)
Weight: 18lbs. (8.2 kg)
External Power Supply:
IEC 3-prong grounded plug
Class II power supply: 100-240VAC 50/60 Hz 0.5A
