Descrizione

PHONO3VB Preamplificatore Phono MM/MC

  • Preamplificatore RIAA
  • Architettura Belcanto “PRe2P”
  • Gain regolabile
  • Alimentazione “Low Noise”

Maggiori informazioni

Descrizione

(dal sito del produttore)

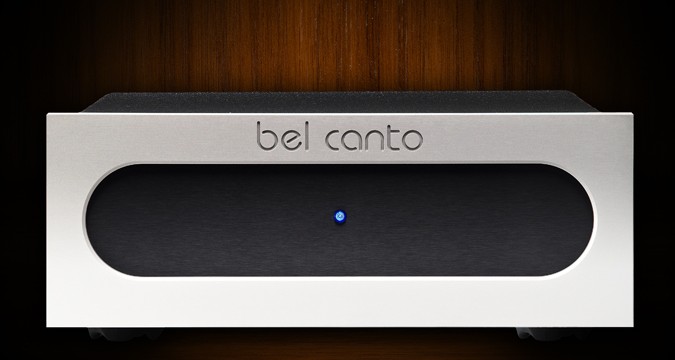

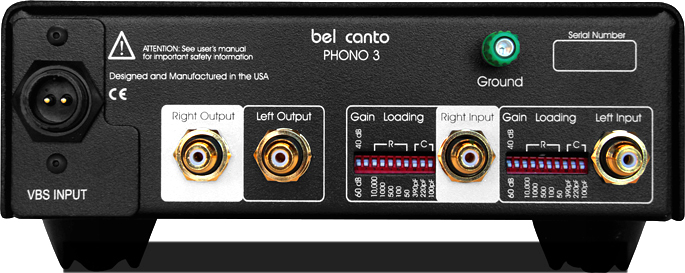

The Bel Canto e.One PHONO3VB RIAA preamplifier builds on the remarkable musical performance of the PRe2P phono preamplifier architecture. Using the same signal path, power supply architecture and parts quality of the PRe2P Phono Stage in a more compact chassis with rear panel accessible gain and loading adjustments the e.One PHONO3VB is a complete high performance solution for the serious LP lover.

A custom low-noise high-isolation power transformer and double stage low noise supply regulation ensure that the e.One PHONO3VB audio circuits get low noise, wideband power for the highest musical resolution possible.

Gain Settings of 40 or 60 dB provide compatibility with most cartridges. Input loading settings for both input resistance and capacitance provide optimum matching for a wide range of moving magnet and moving coil cartridges. Custom audio grade resistors, capacitors and gain stages provide a musical experience that will enhance the enjoyment of your LP collection.



Specifiche tecniche
Bandwidth: 1Hz-50KHz
RIAA Accuracy: 20Hz-20KHz +/- 0.2 dB
Signal to Noise Ratio 40 dB gain: >80 dB A weighted, re 5mV RMS in
Distortion @ 2 Volt RMS/1kHz: <0.01%
Maximum Output Level: 9.5 V RMS
Output Impedance: 100 Ohms single ended
Input Impedance: 47K Ohms nominal (all Resistor Switches UP)
Gain Level Options: 40 dB (100X) and 60 dB (1000X)
Power On usage: >10W
Power Off usage: 0.0W
Internally Set Operating Voltages (LNS1 or VBS1): 100-120VAC or 230-240VAC 50/60 Hz
Dimensions: 8.5” W x 12.5” D x 3” H (216 mm x 318 mm x 75 mm)
Weight: 10 lbs. (4.5 kg)

Features and specifications are subject to improvements and changes without prior notice.
