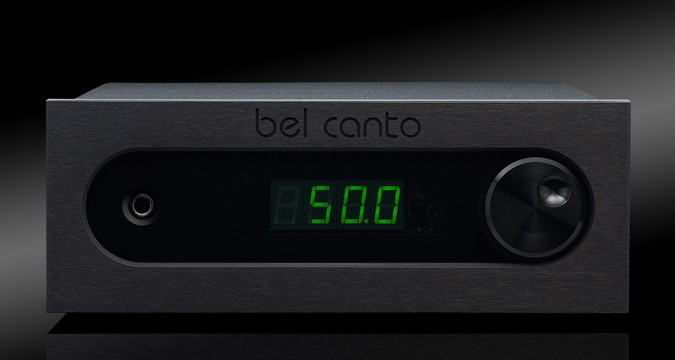

DAC 1.5 – Unità di conversione digitale-analogico
DAC / Control Center digitale con 122 db di gamma dinamica, ingressi digitali e USB e controllo di volume digitale.
- 5 ingressi digitali 24/192
- 1 ingresso USB 24/96
- Controllo di volume digitale (24 bit) per una trasparenza assoluta del segnale
- Uscita amplificata per cuffia con un circuito di amplificazione dedicato
- Chassis in alluminio
(tratto da sito del produttore)
The DAC1.5 converts your digital media into music while giving you full control of your system. It provides the most direct connection from your music to your amplifier. Low jitter, low noise and power isolation delivers the startling dynamics in your music.
The Bel Canto Dual-Differential DAC1.5 Control Center features an outstanding 122dB dynamic range and our proprietary low noise digital to analog convertor core. Including five 24/192 digital inputs and one 24/96 USB input, the DAC1.5 integrates and controls all of your digital audio sources. The front panel features a single multifunction control knob that selects inputs and controls volume level for both the main outs and ¼” front-panel headphone jack. The headphone jack is driven by a dedicated DAC/Amplifier circuit that optimizes the output and eliminates any compromises in the main signal path. The DAC1.5 provides remarkable performance, flexibility and control with a simple user interface, easy to read display, full remote control and off-chassis power supply.
The foundation of the DAC1.5 is our jitter-eliminating Master Reference Ultra-Clock circuitry that ensures that jitter from any source is reduced below the audible threshold. The 24-bit digital volume control is completely transparent and accurate throughout the volume range. This precision continues with custom 0.1% audio grade resistors, class-A output circuitry and low noise power supply components. The heavy-gauge all-steel chassis design prevents mechanical resonance from compromising the audio signal quality.
Green, low-heat, efficient isolated power supplies and a finely-tuned analog output stage make possible Bel Canto’s eco-friendly compact designs; Bel Canto music products are fine instruments that are musically satisfying, discrete and sleek enough to fit any room.
|Maximum Data Input Rate:|
|24bit Data at 192KS/s:||AES XLR, SPDIF BNC/RCA, TOSLINK|
|24bit Data at 96KS/s:||USB|
|Master Clock jitter:||2picosecond RMS|
|Analog 24/192 DAC Section:|
|Maximum Output:||4Vrms balanced XLR, 2Vrms RCA|
|Output Impedance:||200 ohms balanced XLR, 100 ohms RCA|
|Frequency Response:||20 Hz-20 KHz, +/- 0.5dB|
|THD+N:||<0.0015%, 4Vrms balanced out, 1KHz|
|Output Noise:||3.3uVrms A-weighted 20Hz-20KHz|
|Dynamic Range:||122dB A-weighted 20Hz-20KHz|
|THD+N:||0.01% 35mW, 1KHz|
|Output Noise:||17uVrms, A-weighted 20Hz-20KHz|
|Power Usage On:||5W|
|Power Usage Off:||0.0W|
|Power Requirement:||100-120VAC, 220-240VAC 50/60 Hz|
|Dimensions:||8.5” W x 12.5” D x 3.5” H (216 mm x 318 mm x 88 mm)|
|Weight:||13lbs. (6.5 kg)|
